Feeding Device



Position materials and provide tension to ensure the material moving in line.

Rewinding and Unwinding Axis

The position of rewinding and unwinding axis can be changed by adjusting the fine-tuning bolts around the axis.

Compounding Device

Groups of rollers are designed for multiple and multi-layer materials compounding and waste discharging.The componding pressure can be adjusted easily, the gap between upper roller and the lower one can be changed, and at the same time, the axial movement of compounding positioning ring can be achived easily with the fine-tuning bolts on the surface.

Waste Discharging Device

Powerful and flexible devices consist of waste discharging platform, waste discharging blade and group of discharging rollers. Convenient to adujst and realize automatic waste discharging for most products.

Powerful and Professional Compounding and Waste Discharging Equipment

·Specialized for the compounding and waste discharging of multiple, multi-layer tape, film and release paper Etc.

·Flexible on device configuration to add speed-adjustment function to meet processing needs.

·Speed and tension of each part can be adjusted independently.

·Compounding accuracy reach ±0.1 mm.

Technical Parameter of Compounding Equipment

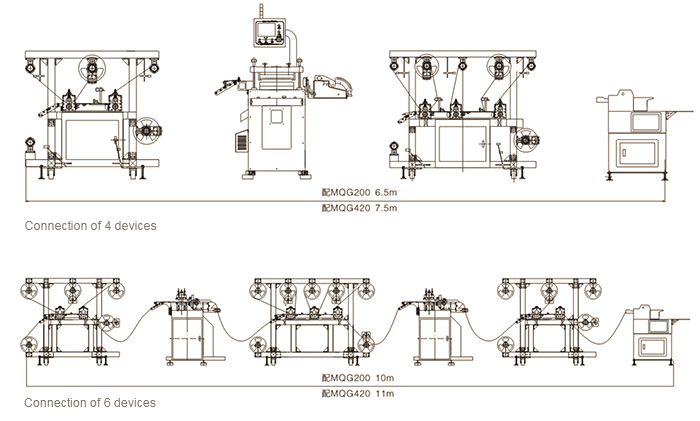

Connection Instruction
