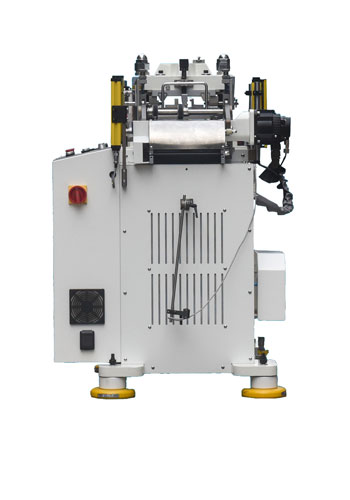

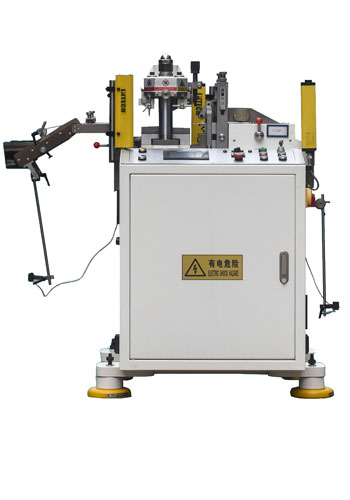

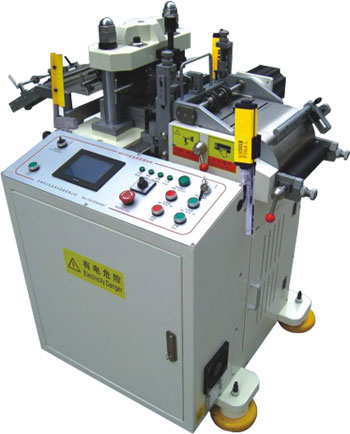

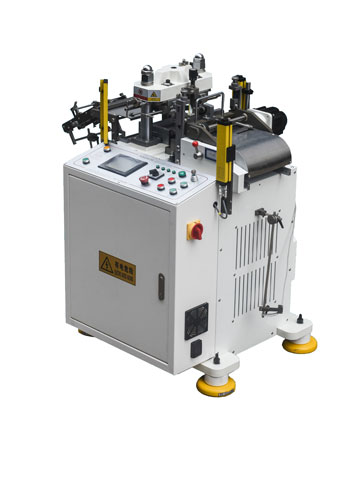

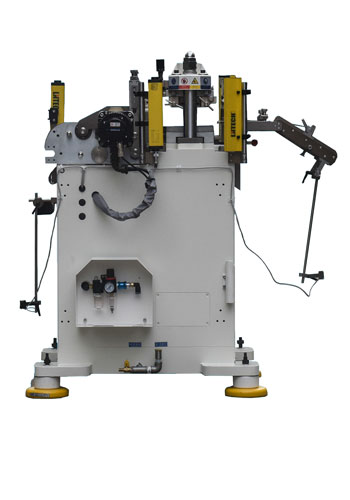

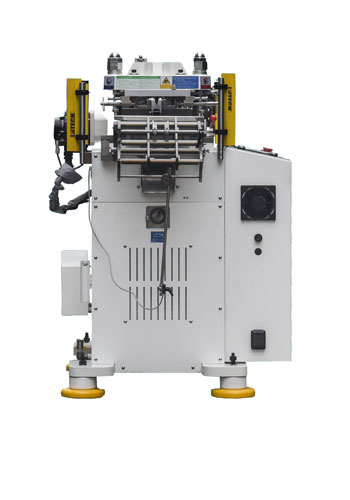

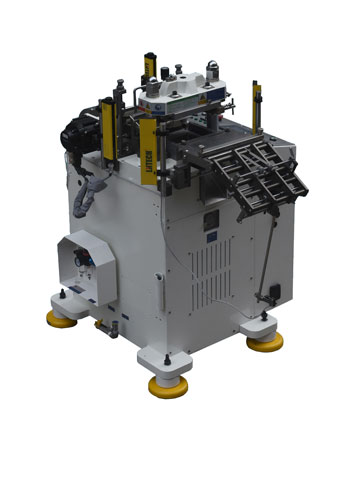

MQG200-5T / MQG200-ZQ
Rotation and Movement of Die
It is used for the rotation and transverse movement of die, which makes it convenient for products with punching position requirements.
Roller uplifting for material charging：used for production with secondary or more times automatic punching to make it more convenient and efficient with max speed: 300 times / min.
Hardware Die
It’s an effective way to ensure precise automatic punching, efficient die changing and no adjustment need for half cutting. It’s very popular for its standardization and interconverting.
Hardware Die Discharger
It is necessary a condition for the usage of hardware dies: for discharging material can’t be discharged from normal discharging channel after full cutting.
Normal Discharging Components
Discharging and punching work in parallel. Two sets of synchronous charging roller will ensure the proper tension for smooth discharging.
Function and Characteristics
· Professional equipment for die cutting industry with the characteristics like precise, reliable, durable and safe.
· Realizing secondary or more times automatic punching and the accuracy reaches ±0.03mm.
· Avoiding adjustment for half cutting;
· Highest punching speed reaching 300spm (MQG200) and 200spm (MQG420);
· Hardware die and its installation standardized, which make installation and adjustment efficient;
· High efficiency and quality equipment for products like black-white film.
· The production capacity of up to 10000 sheets/h;
Technical Parameter of High-speed and Precision Die Cutting Equipment
Item |
MQG200-5T / MQG200-ZQ |
Blank force |
50(kN) |
Cutting stroke |
24(mm) |
Cutting speed |
≤300（time/minites） |
Die height |
105(mm) |
Adjust the depth of the volume |
±5(mm) |
Fine-tuning mode |
Adjust the depth of the volume automatically |
Stamping method |
Moving inch/single stamp/continuous/project |
Tool size |
Width 200 X Length 180 (mm) |
Die type |
Wood plastic die, etch die, hardware die |
Die effective size |
130×150(mm) |
Material width |
≤200(mm) |
Power Motor |
Three-phase asynchronous moto / Customized Servo Motor |
Feeding accuracy |
≤0.2% (Steps greater than or equal to 50 mm) |
Feeding roller |
PU/NBR |
Feeding driver |
Servo motor |
Lubrication |
Automatic lubrication system |
Security |
With three sides of infrared screen |
Power supply |
Three-phase 380V 10A / Three-phase 380V 20A |
Weight of machine |
1000(kg) |
Air supply |
0.55-0.65Mpa |
Size of machine |
Length: 1200× Width: 910× Height: 1250mm |
| Optional components： | MQG200-5T / MQG200-ZQ |
Upper waste material collection components |
Optional |
Lower waste material collection components |
Optional |
Components for die rotation and movement |
Optional |
Full cutting charging components (movable) PET |
N |
Device for die cutting by tracking specific marks |
Optional |
Absorbed devices for anti-scratch |
Optional |
